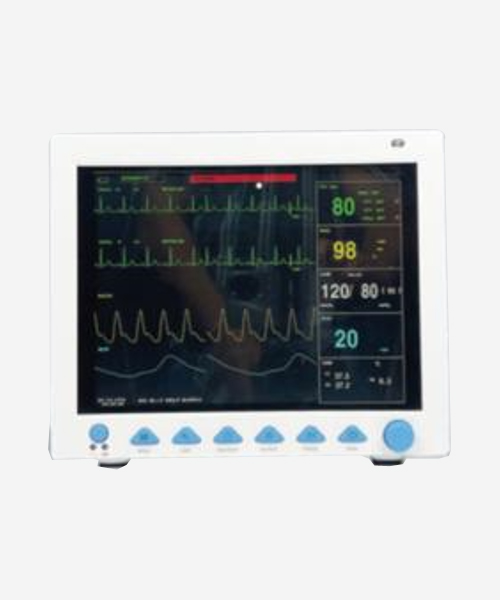

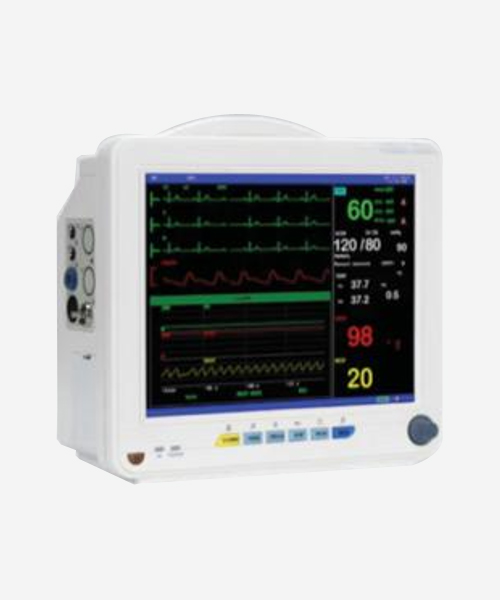

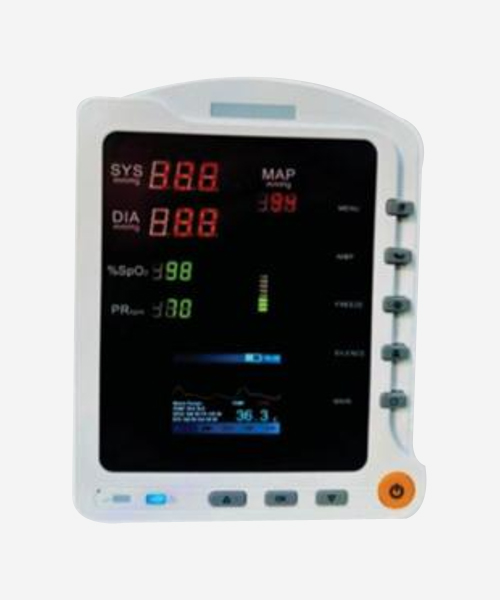

Patient Monitor

Home  /  Our Products  /  Patient Monitor


Features
Code Np: NM-1000
  •  12.1" high resolution color TFT LCD display
  •  One level menu, easy to use
  •  Built-in thermal recorder and two batteries capacity
  •  Maximum 720 hours tabular and graphic trends of all parameters
  •  13 Type Arrhythmic analysis, ST segment Analysis, pacemaker detection
  •  * Suitable for adult, pediatric, neonatal patient
  •  Anti-ESU, anti-defibrillator
  •  OxyCRG Dynamic View and short Trend Coexist Display nurse call system
  •  A Standard network interface can connect to the central monitor system
Features
  •  ECG, RESP, NIBP, PR, SP02, 2-TEMP
Available Ranges
  •   Thermal Recorder, 2-IBP, ETC02 Multi-Gas, touch screen
Specifications

ECG
  •  Lead Mode: 3/5 Leads
  •  Gain:X0.25, X0.5, X1, X2, auto
    Heat Rate: 15-300 bpm (adult), 15-350 bmp (Neonatal)
  •  Accuracy : ± 1%
  •  ST Segment Range : -2.0 - +2.0
  •  Resolution: 1 bpm
  •  ARR Detecting: Yes
  •  Pacemaker: Yes
  •  Electrode offset potential: ±300mV
  •  Bandwidth
  •  Surgery: 1-15 Hz
  •  Leakage Current: < 10uA
  •  Monitor: 0.5 - 35 Hz
  •  Diagnostic : 0.05 - 100 Hz
Respirations
  •  Method : Impedance between R-F (RA-LL)
  •  Base line Impedance Range: 0 - 2.5 KQ
  •  Bandwidth: 0.3 - 2.5 Hz
  •  Measuring Range
  •  Adult: 0-120 rpm
  •  Resolution: 1 rpm
  •  Neo/Ped: 0-150 rpm
  •  Accuracy: 2 rpm
  •  Apnea Alarm: 10 -40 S
SP02
  •  Measuring And Alarm Range: 0-100 %
  •  Resolution: 1%
  •  Accuracy: 70% -100% 2% 0% - 69% unspecified
  •  Actualization interval: about 1 Sec.
  •  Alarm Delay: 10 sec.
NIBP
  •  Word Mode: Manual, Auto, Continuous
  •  Pulse Rate Range: 40 - 240 bpm
  •  Measuring Period in STAT Mode: 5 Min
  •  Measurement Types: SYS, DIA, MEAN
  •  Measuring Range
  •  Adult Mode
  •  SYS: 40 - 270 mmHg
  •  MEAN: 20 - 235 mmHg
  •  DIA: 10-215 mmHg
  •  Pediatric Mode
  •  SYS: 40 - 270 mmHg
  •  MEAN: 20- 165 mmHg
  •  DIA: 10-150 mmHg
  •  Neonatal Mode
  •  SYS: 40 - 135 mmHg
  •  MEAN: 20-110 mmHg
  •  DIA: 10-100 mmHg
  •  Resolution Pressure: 1 mmHg
  •  Maximum Standard Deviation: 8 mmHg
  •  Accuracy Pressure Maximum Mean error: 5 mmHg
  •  Overpressure Protection
  •  Adult Mode: 2973 mmHg
  •  Pediatric Mode: 2403 mmHg
  •  Neonatal Mode: 1473 mmHg
IBP
  •  Label: ART, PA, CVP, RAP, LAP, ICR P1, P2
  •  Measuring and alarm range
  •  CVP/RAP/LAP/ICP: -10-40 mmHg
  •  ART: 0 - 300 mmHg
  •  PA:-6-120 mmHg
  •  P1/P2:-10-300mmHg
  •  Press Sensor
  •  Resolution: 1 mmHg
  •  Sensitivity: 5 u VA//mmHg
  •  Actualization interval: about 1 secretary
  •  Accuray: 2% or 1 mmHg, which great
TEMPERATURE
  •  Channel: 2
  •  Measuring and Alarm Range: 0 -150 C
  •  Resolution: 0.1C
  •  Accuracy: 0.1C
  •  Actualization interval: about 1 Sec.
  •  Average Time Constant:<10 Sec.
The comprehensive range offered by us finds application in private clinics, public hospitals, nursing homes and many more. For the ease of our patrons, we offer these Products at industry leading price.
